Ultrabike: One-75

  • Sale
  • €4.090,00
  • Regular price €5.190,00
  • 3 left in stock

COLOUR

QTY

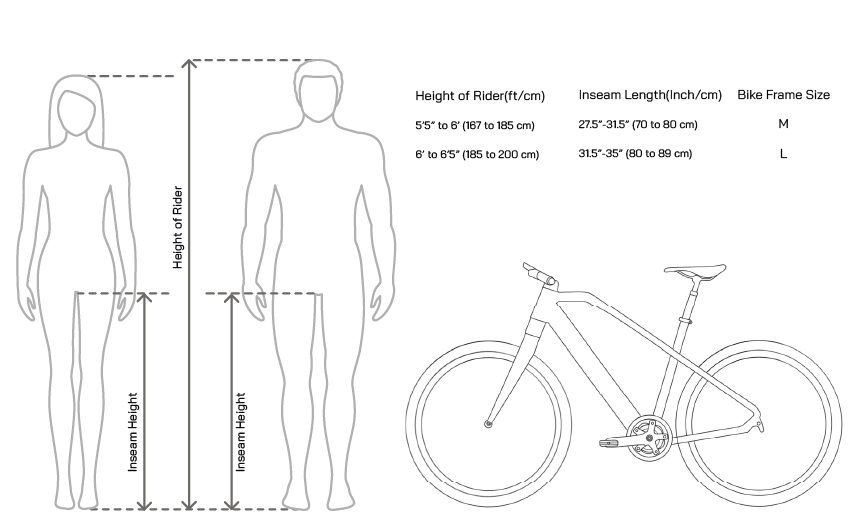

SIZE GUIDE

[Size Info]

Expected Delivery Date : 25th December 2021

50

50 Miles

Real Range

160

160 Nm

Max Torque

10

10 Miles (30mins)

Ultra Fast Charging

750

750 W

Power Option : 250/500/750

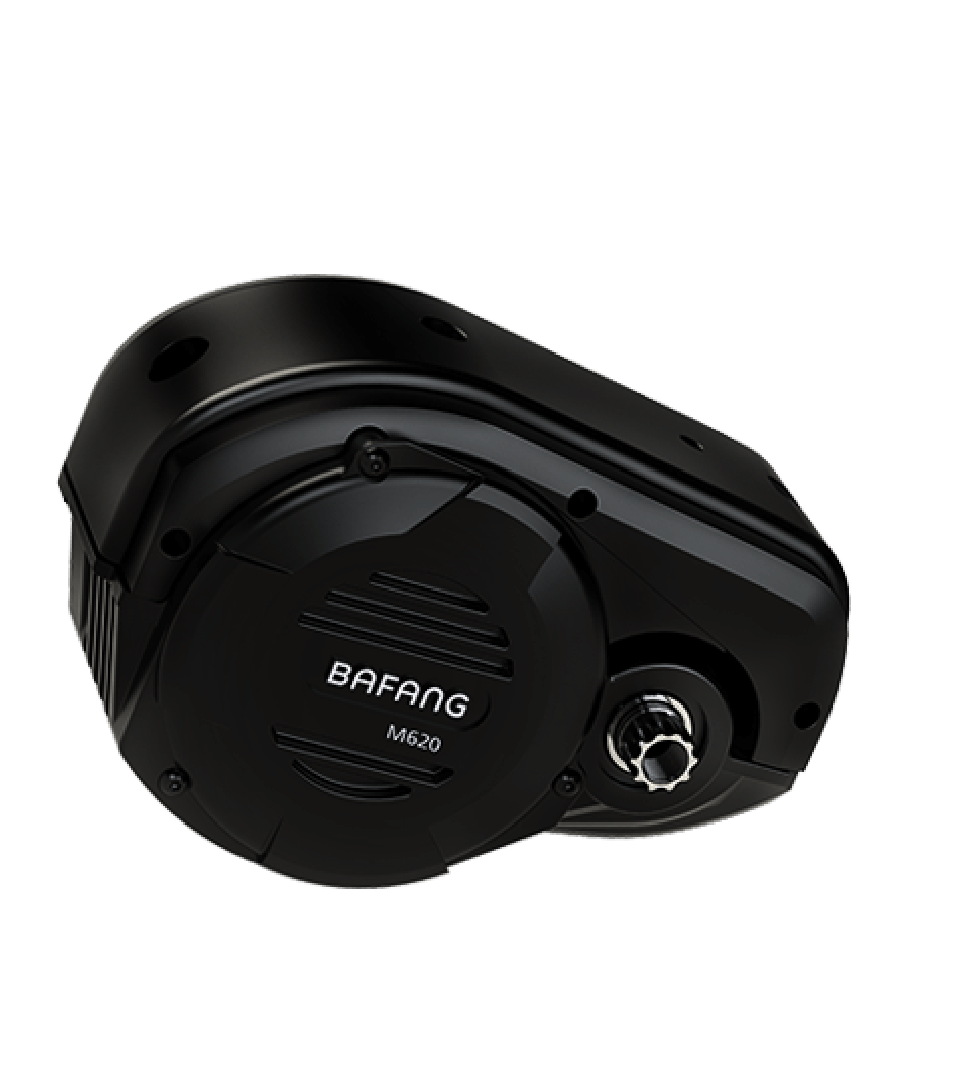

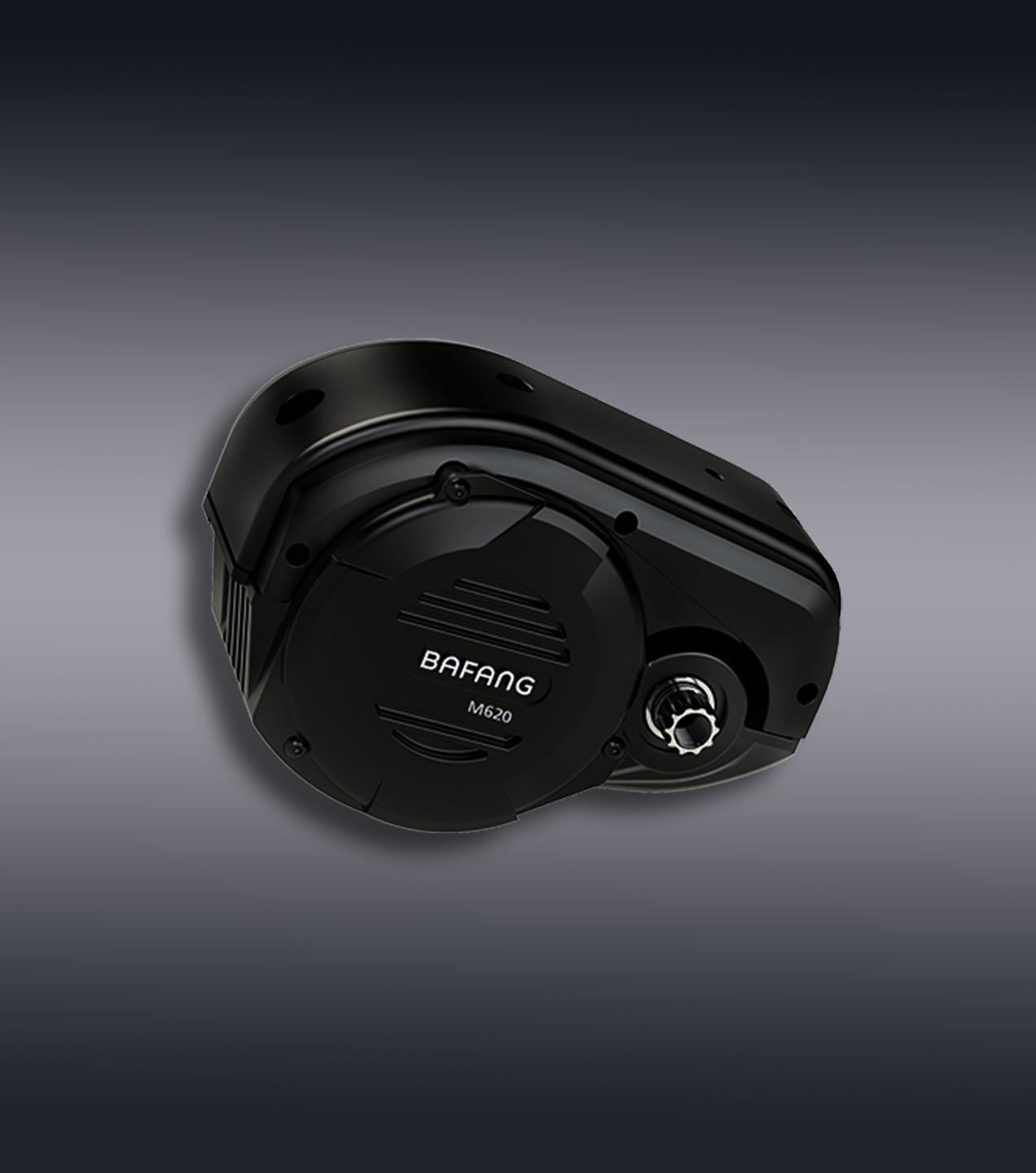

NEXT-GEN ULTRA-DRIVE MOTOR

Bafang’s latest generation Ultra-drive motors can extract greater amounts of torque from the same power rating, giving the One slope-climbing power irrespective of the weight it’s carrying.

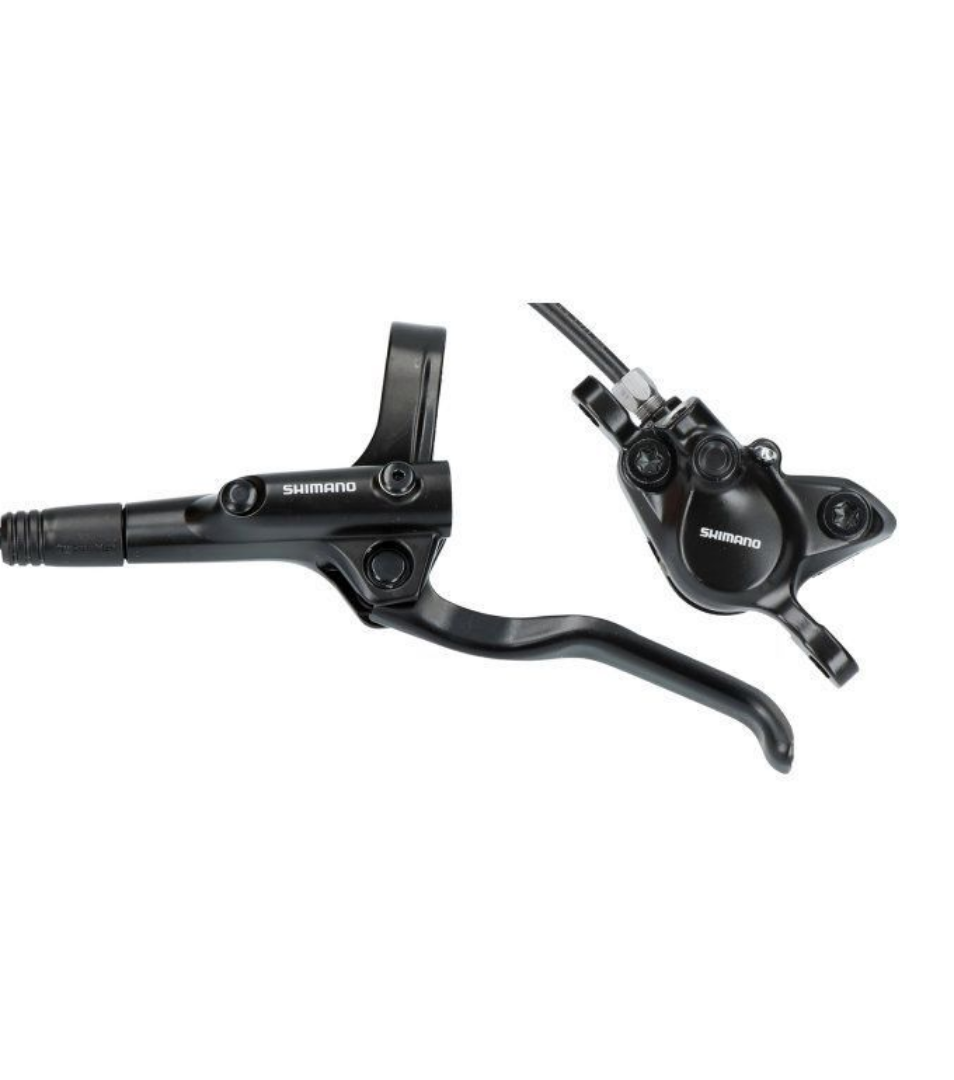

HYDRAULIC BRAKE SYSTEM

BRAKES YOU CAN COUNT ON - Hydraulic disc brakes from Shimano are used to deliver quick and precise stopping power in all weather conditions. The brake cables are hidden in the frame to protect them from any damage.

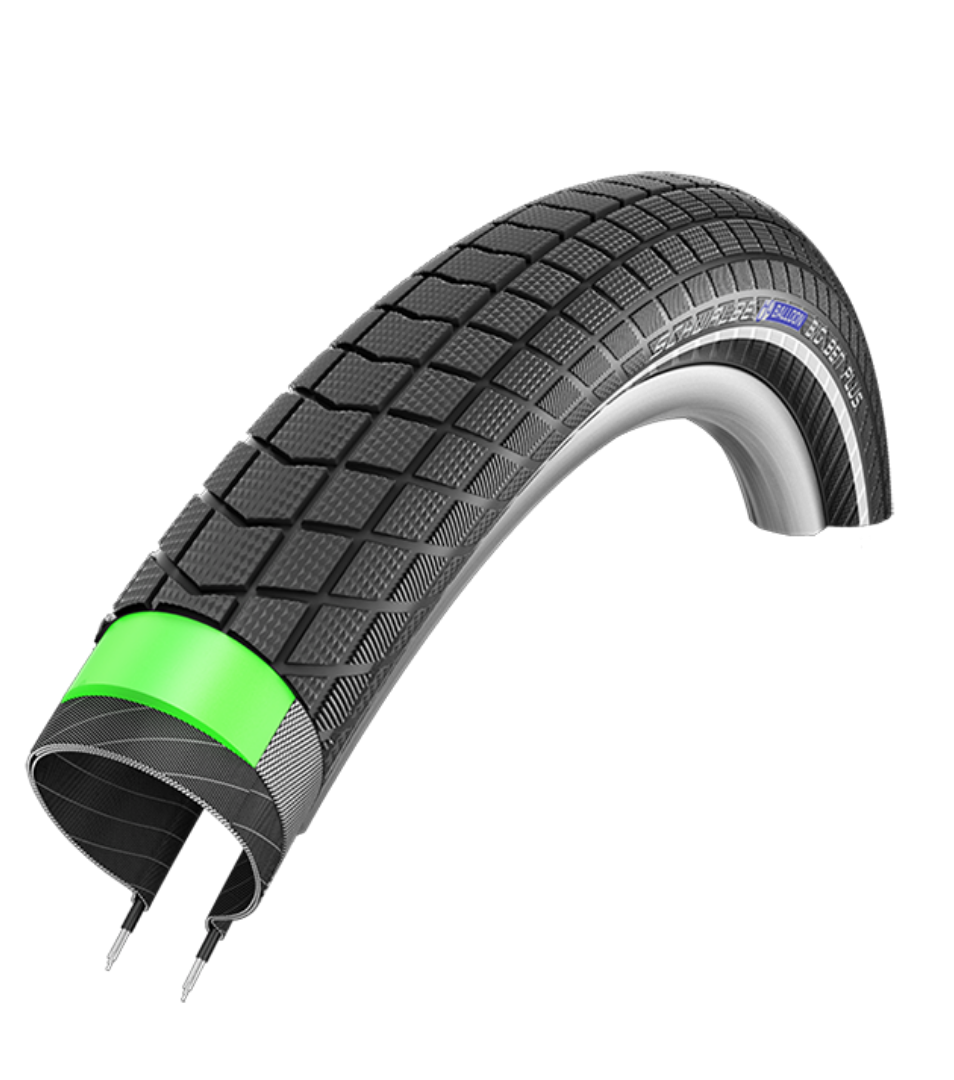

Puncture-resistant tires

COMFORTABLE, COMPOSED & SWIFT - The Ultrabike comes with puncture-resistant, fast-rolling tires. Thanks to its large volume, It can take you to the destination with the maximum comfort, safety, and a solid grip.

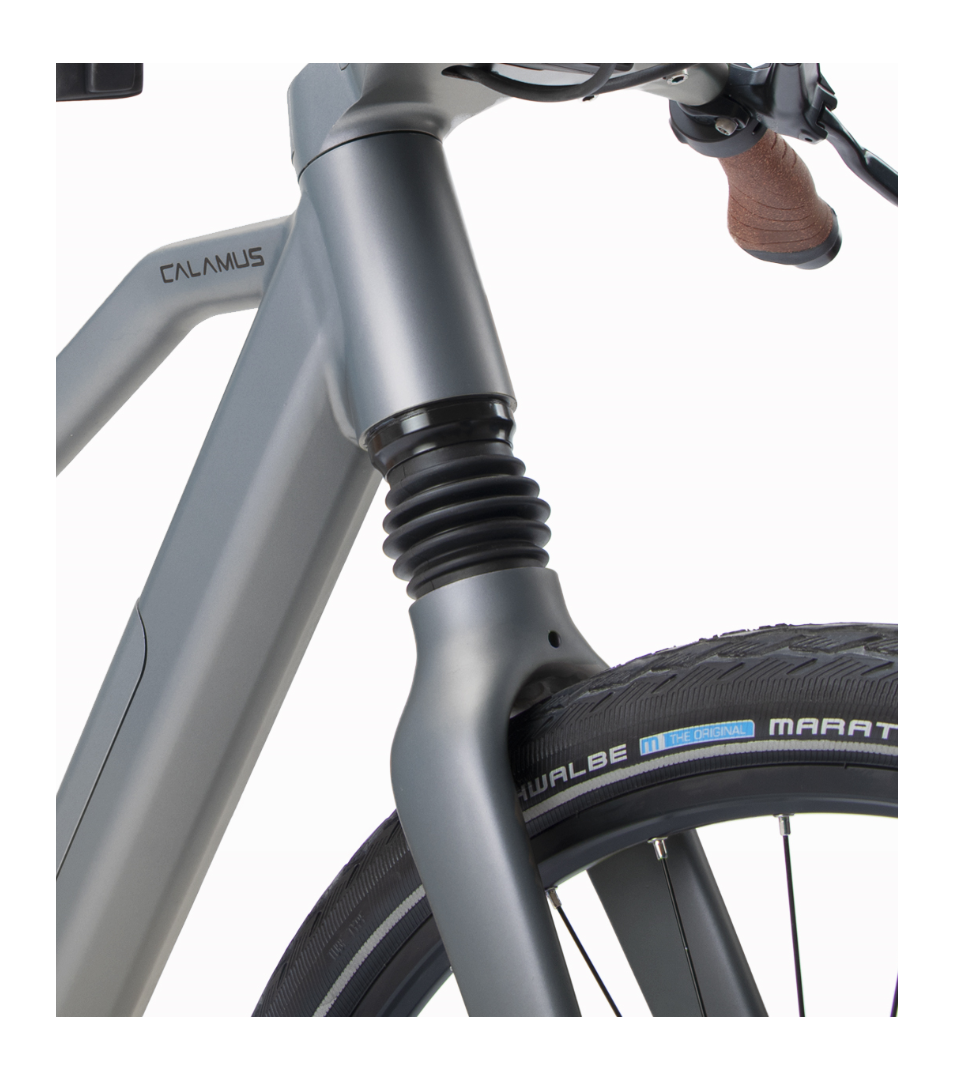

MONOSHOCK

SMOOTH RIDE, EVERY TIME! - Front mono-shock and seat suspension ensure you never feel a bump! A guaranteed smooth ride with the dual suspension at your service.

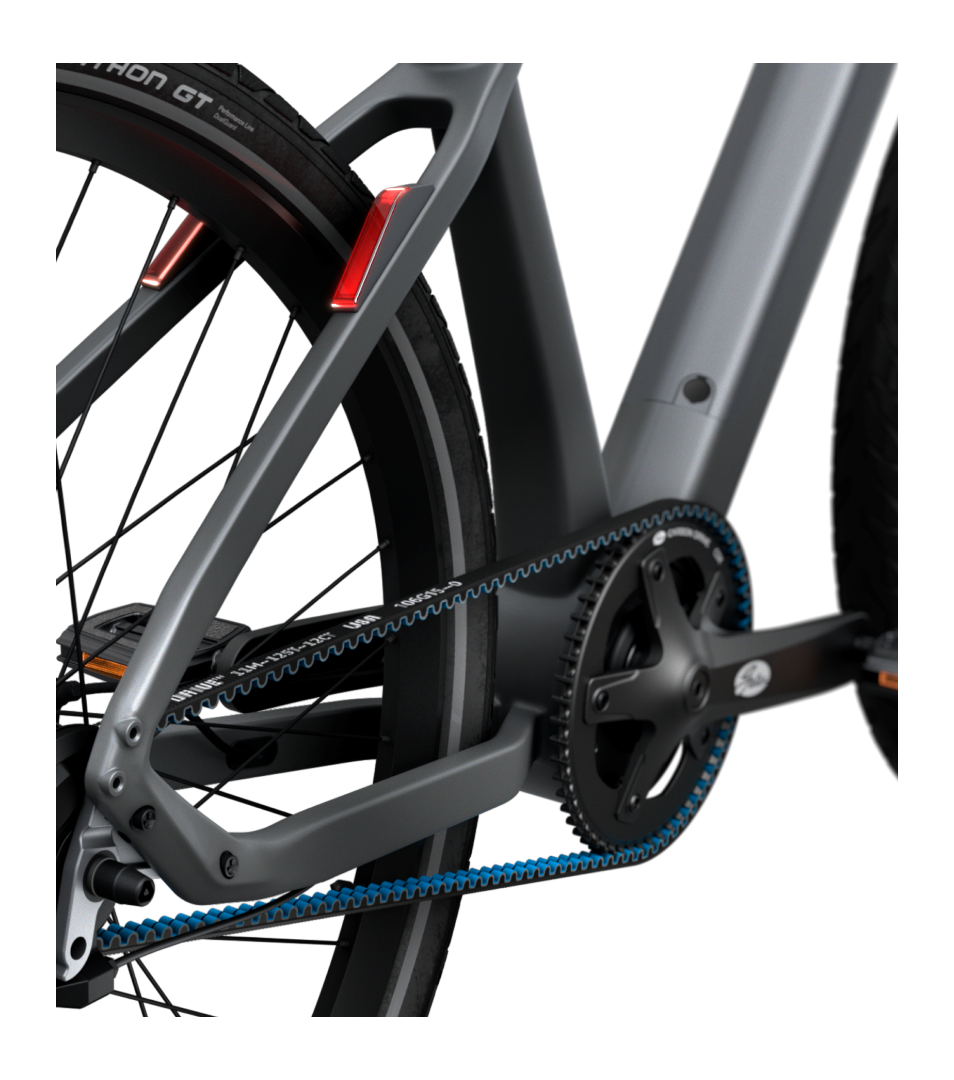

RESPONSIVE CARBON BELT DRIVE

Ultrabikes come with lag-less carbon belts from Gates making your bike ultra-silent and ultra-responsive.

Next-Gen Ultra-drive Motor

Bafang’s latest generation Ultra-drive motors can extract greater amounts of torque from the same power rating, giving the One slope-climbing power irrespective of the weight it's carrying.

HYDRAULIC BRAKE SYSTEM

BRAKES YOU CAN COUNT ON - Hydraulic disc brakes from Shimano are used to deliver quick and precise stopping power in all weather conditions. The brake cables are hidden in the frame to protect them from any damage.

PUNCTURE-RESISTANT TIRES

COMFORTABLE, COMPOSED & SWIFT - The Ultrabike comes with puncture-resistant, fast-rolling tires. Thanks to its large volume, It can take you to the destination with the maximum comfort, safety, and a solid grip.

MONOSHOCK

SMOOTH RIDE, EVERY TIME! - Front mono-shock and seat suspension ensure you never feel a bump! A guaranteed smooth ride with the dual suspension at your service.

RESPONSIVE CARBON BELT DRIVE

Ultrabikes come with lag-less carbon belts from Gates making your bike ultra-silent and ultra-responsive.

RESPONSIVE CARBON BELT DRIVE

Ultrabikes come with lag-less carbon belts from Gates making your bike ultra-silent and ultra-responsive.

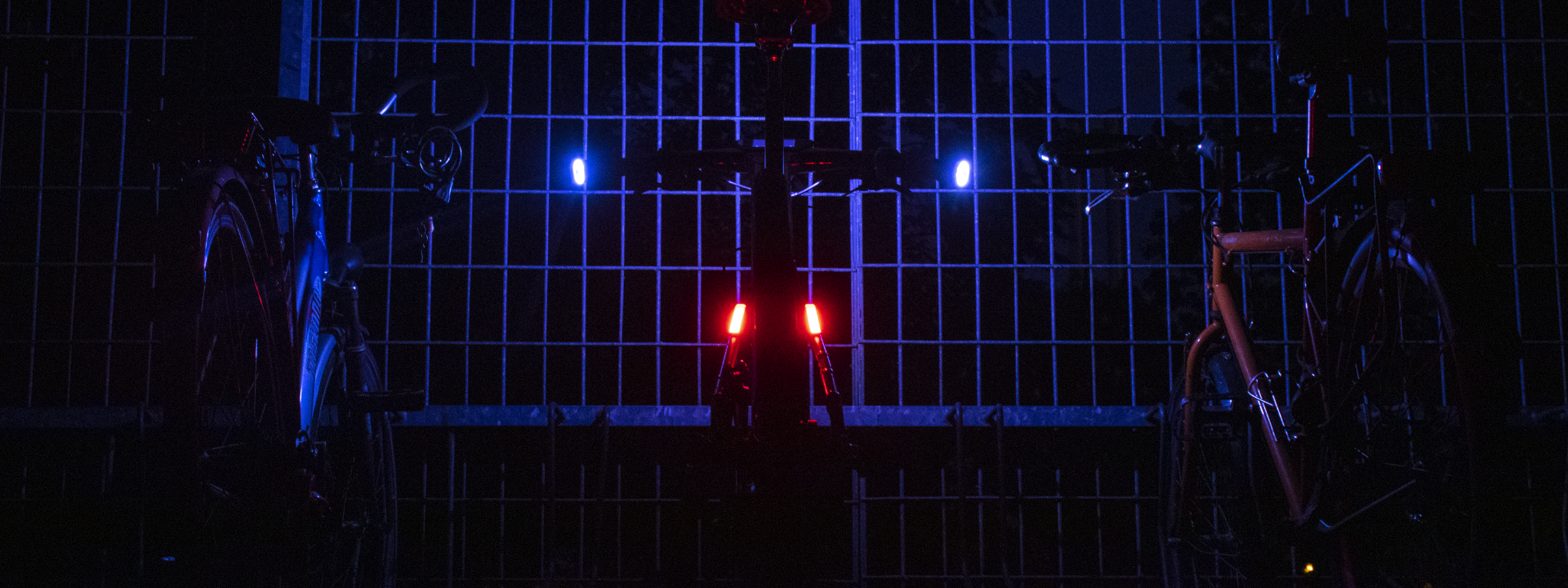

Companion in the dark
The illumination you need to on the road. See clearer and be seen always, even at night.
Smart Power Management
With the highly safe 250 power lithium battery, 504Wh capacity, Ultra-fast charging and efficient acceleration, the Ultra-bike can take you up to 50miles on a single charge. The smart power management system offers six different protective measures, and you can easily check the health of the battery via the mobile app.
Short Circuit and
Overcurrent Protection
Dual Protection
From Overcharging
Temperature
Resistance
Overcurrent
Protection
Under-voltage
auto sleep protection

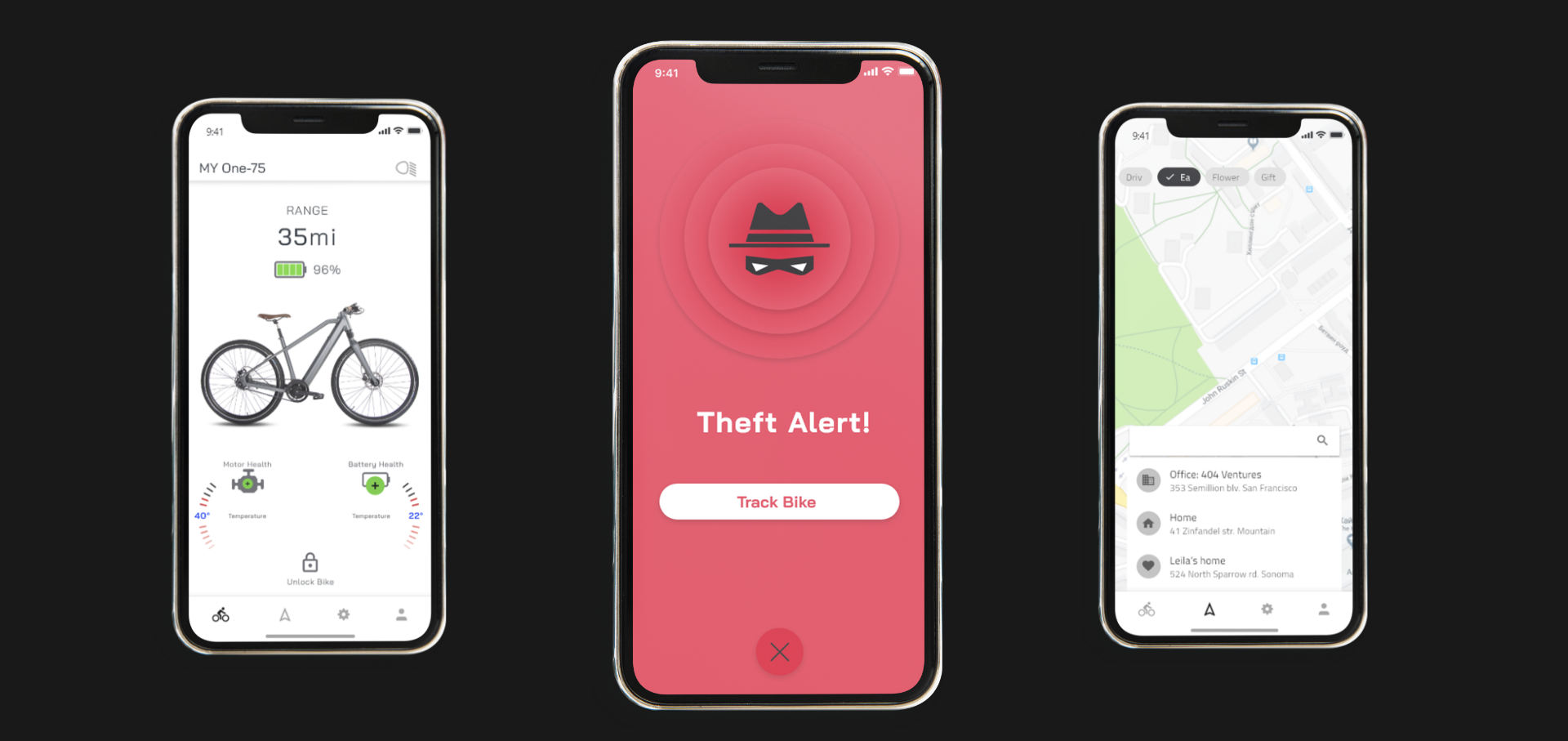

INFORMATION AT YOUR FINGERTIPS

Bike status
Smart Lock
Alarm
GPS
Firmware
updates
Fall Alert

Calamus One-75

Calamus One-75

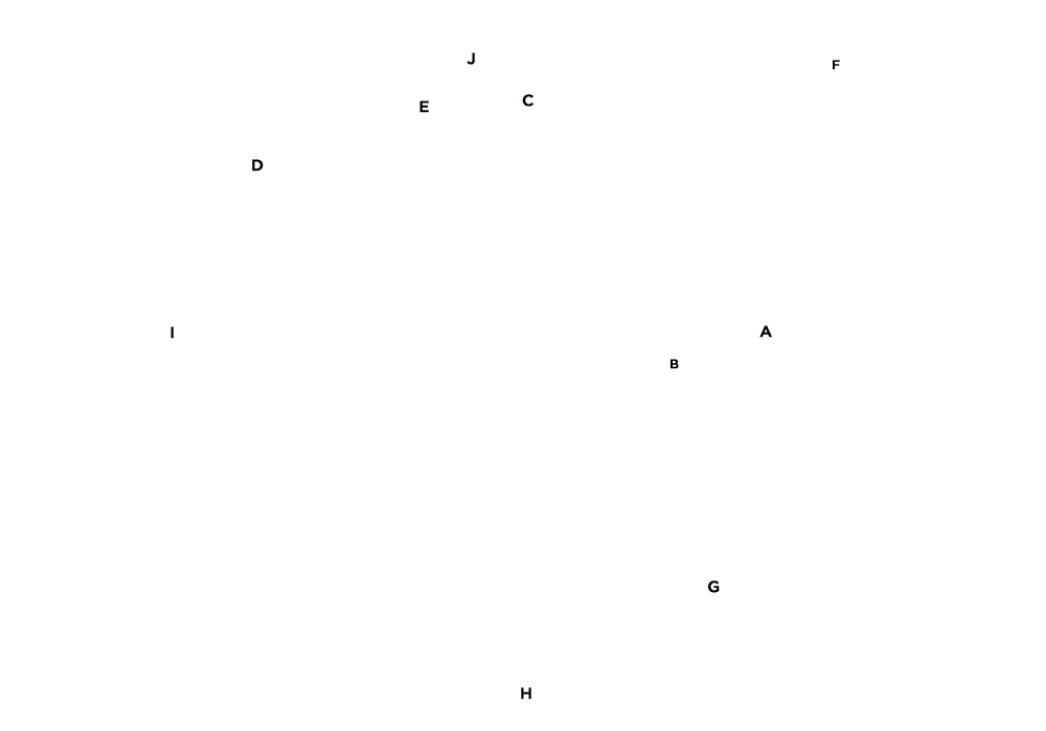

Specs M L
Rider Height 167-185 cm ( 5.5" - 6.06") 185-200 cm ( 6.06" - 6.65")
Inseam 70-80 cm ( 27.5" - 31.5") 80-89 cm ( 31.5" - 35")
Seat Height 700-800 750-850
Seat Tube length 445 485
Top Tube length 523.8 578.3
Head tube Length 120 150
Head tube Angle 70 70
Seat Tube Angle 73 73
Belt Stay Length 470 470
Wheelbase 1101 1151
Stack 615 643
Reach 385 424

Technical Specification

Frame Anodized Aircraft grade Aluminum
Suspension Al Mono-shock front suspension with 35mm travel
Saddle Velo Ergo saddle with Satori suspension seat post
Weight 50.7 lb (23 Kgs)
Wheels 28" I Anodized aluminum rims I Stainless steel spokes
Tire   Schwalbe Energizer Plus (28”x 1.75”) puncture-protected tires
Motor Bafang M620 (750W)
Gears  Rohloff Speed Hub 500/14
Color Asphalt Grey, Panther Black

Motor

Max speed 28 Mph (45 Km/h)
Motor rated power 750W
Sensors Used Torque Sensors + Cadence Sensors
Ingress Protection IP65
Max Torque 160 Nm
Motor Weight 4.5 Kg
Motor Efficiency
Up to 80%

Braking

Model BL-MT200
Series SHIMANO ALIVIO M3100 Series
Color Black
Brake Type Hydraulic disc brake
Lever size (Finger) 3

Lights

Headlights 1600 Lumens, IP 65, StVZO compliant headlight with DRL
Taillights LED tail light with RoHS compliance
Turn indicator LED Turn Indicator With RoHS compliance

Battery

Battery Type Lithium Ion (Li-ion)
Charging limited voltage 54.4V
Nominal voltage 48V
Rated capacity 14Ah
Charging temperature range 0-40°C
Discharge temperature range 0-40°C
Weight- Approx. 3.5Kg
Charger rated input voltage 100-240V AC 50/60Hz
Battery voltage limit 250- 32V, 750- 41.6V

Other

Touchscreen Display Integrated 4” Capacitive touch LCD TFT display Android enabled with Calamus Intelli UI
Ultra Boost Button Boost Button Quick on-demand acceleration
In-built Speaker High-frequency smart horn I System and alarm sounds
Wireless Tech Rider Profile recognition I Over-the-air firmware updates
Security Integrated theft defense system with Ultra smart lock, Anti-theft nuts and bolts & GPS, 4G enabled
Phone App IOS and Android compatible I Adjustable rider preferences I Find your bike
Blindspot Assist Haptic feedback through handlebar by Blindspot Detection module (Up to 20m)

Package contents

UltraBike x1
Battery x1
Charging adapter x1
Tool Box x1
Warranty Card
User Manual x1
Quick start guide x1
Legal Statement x1
